SVPF-12SLR
FULL BORE SAFETY RELIEF VALVE
FLANGED 10K/150 TO SCREWED END
BODY: FC. SEAT: CF8. (1*2)
DISC/SEAL: SUS304+PTFE.
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1”~2” (WITH LEVER)
ALT. SIZE: (1*2)
FLANGED 10K/150 TO SCREWED END
BODY: FC. SEAT: CF8. (1*2)
DISC/SEAL: SUS304+PTFE.
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1”~2” (WITH LEVER)
ALT. SIZE: (1*2)

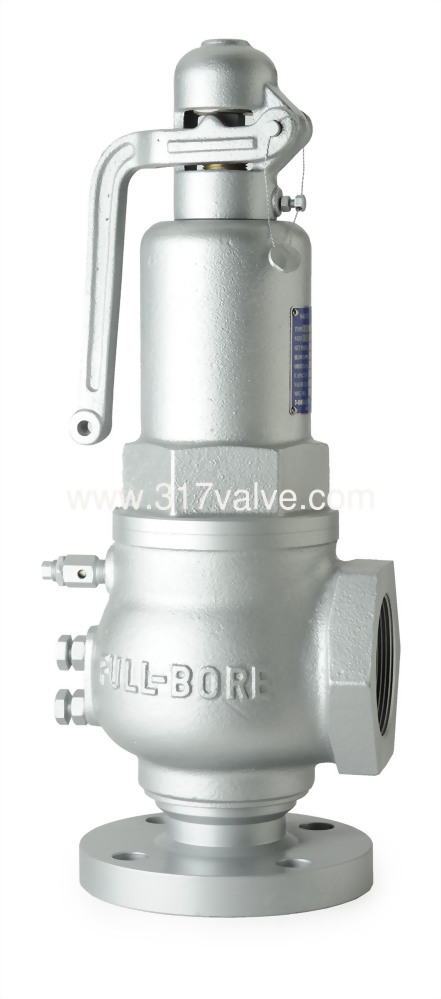

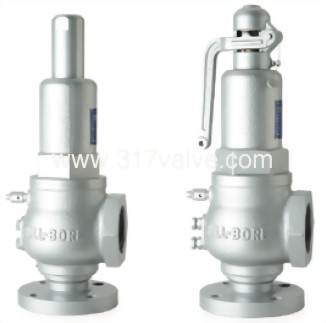

(SVPF-12SLR) FULL BORE CAST IRON SAFETY RELIEF VALVE FLG*SCW
“ 317 " BRAND CAST IRON SAFETY RELIEF VALVE FULL BORE INLET FLANGED
JIS10K, ANSI 150LBS / OUTLET SCREWED END TO BSPT, NPT. WITH LEVER. SEAT/DISC:
SUS304. SPRING: STEEL. SET: 1-10 KGS.(ALT: 11-16 KGS) SAFETY RELIEF VALVE (LOW LIFT & FULL BORE)
OF T-ONE-S TRADING INC. TAIWAN MANUFACTURER
(SVPF-12SLR)
FULL BORE ST.ST. SAFETY RELIEF VALVE
INLET: FLANGED END / OUTLET: SCREWED END WITH LEVER. (1-10K/16K)
Please
specify the required Working Pressure and Set Pressure when ordering.
The features of low lift stainless steel safety valves for which the valve seat
& disc are processed by lapping.
The Disc can be replaced with PTFE for good effect of anti-leakage. (Model: SVPF-12SA, SVPF-12SLR)
