UD.UDH

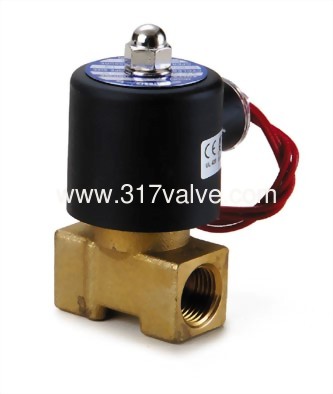

FORGE BRASS SOLENOID VALVE
NORMALLY CLOSED. SCREWED END
BSPT, NPT, BSP. AC110V/220V. DC24V
FOR WATER, AIR, VACUUM USE.
SIZE: 1/8”~1/4” (0-7K AIR) 3/8”
(0-10K AIR) 1/2” (0-3K AIR)
TEMP: -5~80℃.
NORMALLY CLOSED. SCREWED END
BSPT, NPT, BSP. AC110V/220V. DC24V
FOR WATER, AIR, VACUUM USE.
SIZE: 1/8”~1/4” (0-7K AIR) 3/8”
(0-10K AIR) 1/2” (0-3K AIR)
TEMP: -5~80℃.
(UD/UDH Series) DIRECT-ACTING, CONDUCTIVE AND NORMALLY CLOSED SOLENOID VALVE
- UD SERIES IS DIRECT-ACTING, CONDUCTIVE, NORMAL CLOSE.
- VALVE BODY MADE OF FORGED BRASS.
- UD CAN BE OPERATED DIRECTLY WITHOUT PRESSURE.
- SMALL SIZE AND EASY ASSEMBLY.
- STANDARD VOLTAGE: 110VAC / 220VAC / 24VDC. (50/60HZ)
- SPECIAL VOLTAGE AC/DC FOR CUSTOMER MADE.
- SCREWED END: BSPT, NPT, BSP.
-
NORMAL WORKING TEMPERATURE: 80℃ (NBR).
OTHERS: VITON (130℃), SILICON (130℃), PTFE (185℃) WHEN REQUESTED. -
AC VOLTAGE TOLERANCE: +/- 10%
DC VOLTAGE TOLERANCE: +/- 1% - UD-6~UD-8 PROVIDE GAS SPECIFICATION.
-
NOT APPLY FOR FLUID OF
●LIQUID STATUS WHEN HEAT, SOLID STATUS WHEN COOL.
●VISCOSITY OVER 20 CST.
●CORROSIVE FLUID.
(UD/UDH Series) SOLENOID VALVE
|
