SV-VATT
BRONZE SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
DISC/SEAT: FORGED BRASS
SEAL: VITON (WITHOUT THERMOCOUPLE)
SET P.: 0.3-7 KGS/CM2.
SIZE: 3/4" (WITH LEVER)
BEST FOR WATER, AIR, STEAM.
SCREWED END TO BS21, ANSI B2.1
DISC/SEAT: FORGED BRASS
SEAL: VITON (WITHOUT THERMOCOUPLE)
SET P.: 0.3-7 KGS/CM2.
SIZE: 3/4" (WITH LEVER)
BEST FOR WATER, AIR, STEAM.

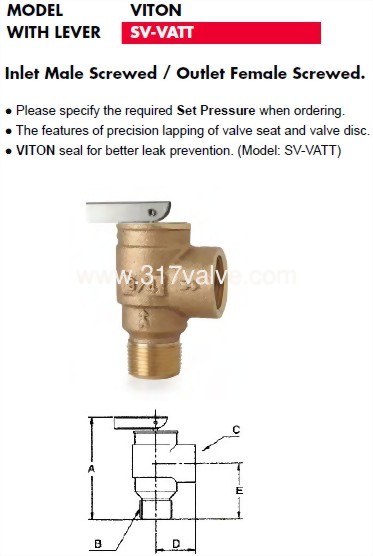

(SV-VATT) BRONZE SAFETY RELIEF VALVE
" 317 " BRAND BRONZE SAFETY RELIEF VALVE SCREWED END. MAX: 7 KGS. SPRING: STEEL. 317 SEAL OF SAFETY RELIEF VALVE (LOW LIFT & FULL BORE) OF T-ONE-S TRADING INC. TAIWAN MANUFACTURER.
SV-VATT (0.3K-7K)
BRONZE LOW LIFT SAFETY RELIEF VALVE
(WITHOUT
THERMOCOUPLE)
Please specify
the required Working Pressure and Set Pressure when
ordering.
The features of low lift safety valves for
which the valve seat & disc are processed by lapping.
Viton seal for better leak prevention.
